Prices Effective March 30, 2023
Feed Hopper Price List
2023

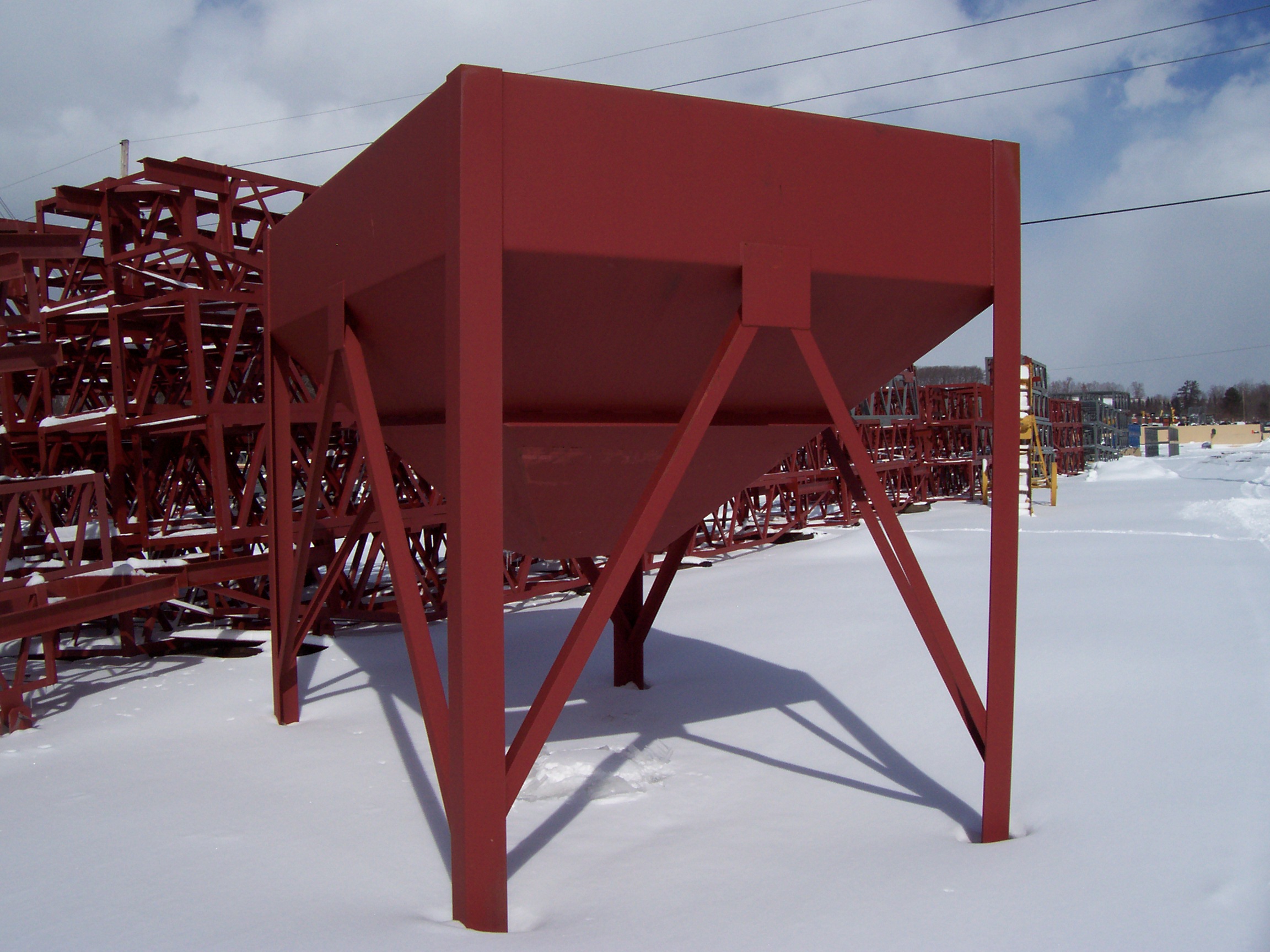

8' x 12' x 10" Hopper
(Click price for more information)
8' x 12' x 10'
FEED HOPPER
1/4" Reinforced Sides
Adjustable Feed Gate - On "Sloped" Side
6 x 6 x 1/2 Angle Legs & 2 x 2 x 1/4 Angle Bracing
24" x 24" Opening
PRICE.....................................................................$ P.O.A.
Notes/Exceptions:
Painted Outside Only.
Additional Skirting and/or chute work may be required depending on Customer Site Conditions.
Terms.........25% with order, remainder C.O.D. prior to shipment
F.O.B...........Boswell, PA

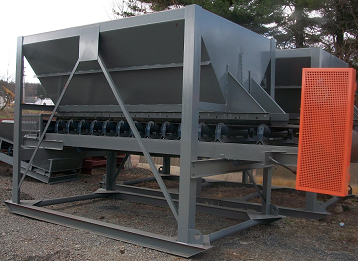

8' x 14' Hopper w/ Belt Feeder
(Click price for more information)
8' x 14'
FEED HOPPER
Bin:
8'-0" x 14'-0" Bin
1/4" Reinforced Sides - (12 Cubic Yard)
Adjustable Feed Gate
Skirt Board Seal Full Length
Free Standing Legs with Skids
Feeder:
Lagged Head 16" Dia., 2 15/16" Shaft & Ball Bearing
Winged Tail 14" Dia., 2 15/16" Shaft & Ball Bearings w/Screw Take-ups
World Wide #5-25 Drive, Motor Mount, Belt Guard
20 hp, TEFC, 1800 RPM, 230/460 volt
Pioneer Picking Table Type Rollers on 12" Centers
Belt, Rubber, 3 Ply, 330 PIW, 3/16 x 1/16 Cover
Tail Guard
Primed & Painted, Tool Steel Gray, Unless Specified Differently
PRICE...................24" Feeder..............................$32,590.00
PRICE...................30" Feeder..............................$33,625.00
PRICE...................36" Feeder..............................$33,955.00
* Bin with 36" Feeder has #6-25 Reducer with 25 hp motor
Terms.........25% with order, remainder C.O.D. prior to shipment
F.O.B...........Boswell, PA
Download 8' x 14' Feed Hopper Price and Spec Sheet

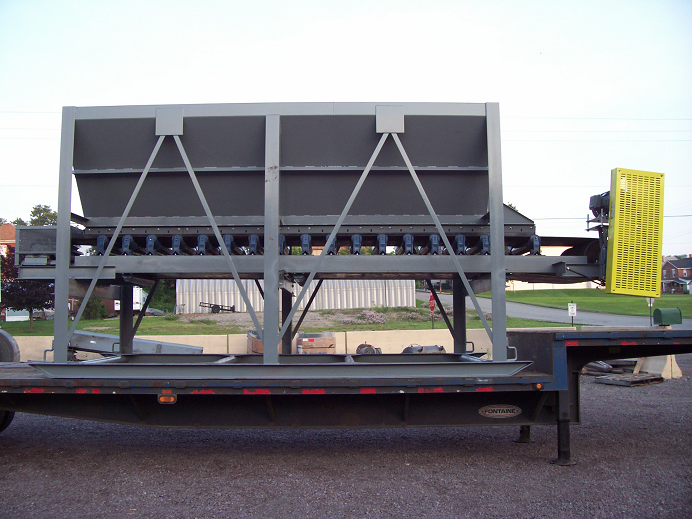

8' x 16' Feed Hopper
(Click price for more information)
8' x 16'
FEED HOPPER - 10'-0" High
8' X 16' FEED BIN, 1/4" REINFORCED SIDES
DISCHARGE END "WINGS"
SKIRT BOARD SEAL FULL LENGTH
6 X 6 ANGLE LEGS
6 X 6 ANGLE RELIEF
"I-BEAM" SKID
PRIMED AND PAINTED TOOL GRAY
Feeder/Belt:
Lagged Head 16" Dia., 3 7/16" Shaft & Roller Bearings
Winged Tail 14" Dia., 3 7/16" Shaft & Roller Bearings w/Screw Take-ups
World Wide #6-25 Drive, Motor Mount, Belt Guard
30 hp, TEFC, 1800 RPM, 230/460 volt
Pioneer Picking Table Type Rollers on 12" Centers under Bin
Belt, Rubber, 3 Ply, 330 PIW, 3/16 x 1/16 Cover
Tail Guard
Primed & Painted, Tool Steel Gray, Unless Specified Differently
PRICE...................24" Feeder..............................$38,895.00
PRICE...................30" Feeder..............................$40,755.00
PRICE...................36" Feeder..............................$42,770.00
Terms.........25% with order, remainder C.O.D. prior to shipment
F.O.B...........Boswell, PA
Download 8' x 16' Feed Hopper Price and Spec Sheet
|
