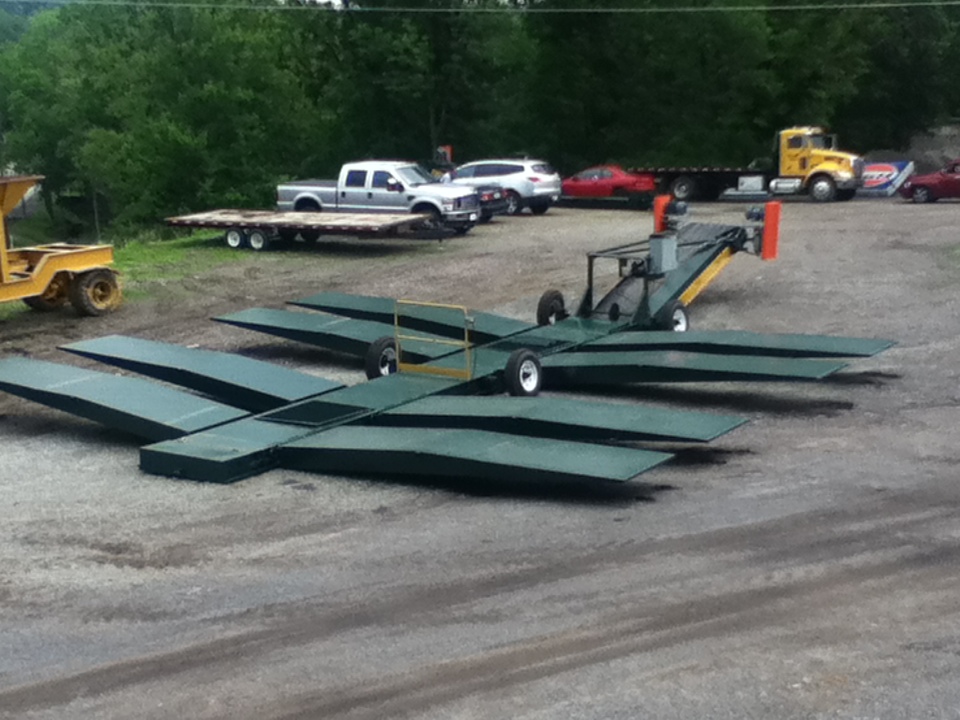

Drive Over/Truck Unloader Conveyor STANDARD 42 x 30
(Click picture above for video)
(Click price below for more information)
STANDARD 42 x 30 Drive Over Conveyor
Structure
10" I-Beam Horizontal Body
1/4" Diamond Plate Top 1/4" Plate Bottom Skid 3/16 Belt Pan
Removable Ramps - 4 each
48" Wide - 16 ft Long - Diamond Plated
8" Channel Inclined Structure
3/16 Flat Pan Roller Troughing Idlers
- Lagged Drive Pulley 18" Dia.
2 7/16" Shaft Roller Bearings
8” Plain Drum Snub – 1 15/16 Shat & Roller Bearings
- Winged Tail - 6" Dia.
2 7/16" Shaft Roller Bearings Tubular Screw Take-ups
- World Wide #4 Drive
- 15 hp, TEFC, 1800 RPM, 230/460 volt
- Full Voltage Motor Starter
- 42" x 52" Opening w/Grate
- Belt - Bare Back Chevron
- HYDRAULIC LIFT JACK/CYLINDER SYSTEM
- 4 each - Ramps
- 16" Hold-Down Wheel
- Tail Guard
- Primed & Painted, Green
PRICE.......................................................................$ 59,920.00
Options
Base Price - Pump/Motor Assembly, 4 Hydraulic Cylinders & Fittings
- Electrical Option #1 - Site Panel Modifications.......ADD......$ P.O.A.
Install - 480/120 V Transformer, 2 hp Motor Starter, 3 Position Momentary Switch
- Electrical Option #2 - New Panel - Complete.......ADD......$ P.O.A. -
HIGHLY RECOMMENDED!
Wire 15 hp Motor, Hydraulic Pump Motot and Solenoid Valves
Terms.........25% with order, remainder C.O.D. prior to shipment
F.O.B...........Boswell, PA
Download Drive Over Conveyor Price and Spec Sheet Double Drive Over/Truck Unloader Conveyor STANDARD 42 x 50
(Click price below for more information)
STANDARD 42 x 50 Drive Over Conveyor
Structure
10" I-Beam Horizontal Body
1/4" Diamond Plate Top 1/4" Plate Bottom Skid 3/16 Belt Pan
Removable Ramps - 4 each
48" Wide - 16 ft Long - Diamond Plated
8" Channel Inclined Structure
3/16 Flat Pan Roller Troughing Idlers
- Lagged Drive Pulley 18" Dia.
2 7/16" Shaft Roller Bearings
- Winged Tail - 6" Dia.
2 7/16" Shaft Roller Bearings Tubular Screw Take-ups
- Dual Drive
World Wide #4 Drive 2 x 10 hp, TEFC, 1800 RPM, 230/460 volt
- Full Voltage Double Motor Starter
- Electric-Hydraulic Jack/Cylinder Package
- 42" x 52" Opening w/Grate
- Belt - Bare Back Chevron
- 16" Hold-Down Wheel
- Tail Guard
- Primed & Painted, Green
PRICE.......................................................................$ 82,220.00
Options
Base Price - Pump/Motor Assembly, 4 Hydraulic Cylinders & Fittings
- Electrical Option #1 - Site Panel Modifications.......ADD......$ P.O.A.
Install - 480/120 V Transformer, 2 hp Motor Starter, 3 Position Momentary Switch
- Electrical Option #2 - New Panel - Complete.......ADD......$ P.O.A. -
HIGHLY RECOMMENDED!
Wire 15 hp Motor, Hydraulic Pump Motot and Solenoid Valves
Terms.........25% with order, remainder C.O.D. prior to shipment
F.O.B...........Boswell, PA
Download Double Drive Over Conveyor Price and Spec Sheet
